HIRSCHMANN TEST AND MEASUREMENT  931804100  SOCKET, 16A, 4MM, FREE, BLACK, PK5

HIRSCHMANN TEST AND MEASUREMENT 931804100
Technical Data Sheet (78.22KB) EN See all Technical Docs

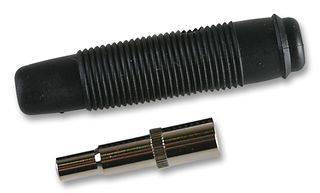

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The KUN 30 series from Hirschmann are 4mm banana sockets. These sockets are shatter proof and flexible. It provides insulated coupling for 4mm diameter plug and solder connection up to 2.5mm² cable cross section.
  • Nickel plated brass contact
  • IEC 61010, CAT I measurement category
  • 4mm diameter unsprung socket
  • Solder terminations
  • Rated voltage of 30VAC / 60VDC
  • Rated current of 16A
  • Contact resistance is 3mohm
  • PVC housing material
  • Temperature range from -25°C to 70°C
  • Available in variety of colours

Product Information

Product Range:
KLEPS 2600 Series
Gender:
Jack
Contact Termination Type:
Solder
Current Rating:
16A
Voltage Rating:
60VDC
Contact Plating:
Nickel Plated Contacts
Contact Material:
Brass
Connector Colour:
Black
Connector Mounting:
Cable Mount
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Test & Measurement

Legislation and Environmental

Country of Origin:
Austria

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85369010
Weight (kg):
.034
