Product Overview

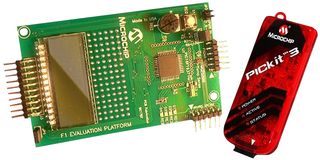

The DV164132 is a F1 evaluation kit. It is a demonstration/development tool for enhanced mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx) and includes the PICkit-3 for quick programming and development. Populated with a PIC16LF1937 featuring XLP technology, this platform consists of a 44-pin development board with prototyping space, 3V LCD glass, support for the motor control add-on (DM164130-2) and support for PICkit-3 & PICkit serial. This kit provides a platform for general purpose development and includes demonstrations focusing on low Power, LCD and motor control. Quick & easy development is ensured with the integrated functionality including prototyping area, LCD control, system current monitoring, temperature sensing, Real time clock, LED drive, button control and BLDC motor control.
  • 44-pin development board with generous prototyping area
  • Populated with a PIC16LF1937 featuring NanoWatt XLP technology
  • 3 Volt, 40 segment Multimeter LCD glass
  • Potentiometer, LEDs, Mechanical button
  • MCP9800 temperature sensor
  • 32KHz low power crystal
  • Current monitoring connector to measure low power XLP capabilities
  • in circuit serial programming interface for PICkit3
  • PICkit serial interface
  • Expansion header for F1 BLDC motor add-on
The PICkit 3 In-Circuit Debugger/Programmer is NOT a production programmer. It should be used for development purposes only.

Product Information

Silicon Manufacturer:
Microchip
Core Architecture:
PIC
Core Sub-Architecture:
PIC16
Silicon Core Number:
PIC16F
Silicon Family Name:
PIC16F19xx
No. of Bits:
8bit
Kit Contents:
F1 Evaluation Platform, PICkit 3 In-Circuit Debugger, USB Cable, Platform & Demonstration Guide
Product Range:
-
Features:
LCD Demonstration, Temperature Sensor, Brushless DC (BLDC) Motor Control
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial;
  • Consumer Electronics

Contents

F1 evaluation platform, PICkit-3 in-circuit debugger, USB cable, CDROM containing software demo programs

Legislation and Environmental

Country of Origin:
United States

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
84733080
Weight (kg):
.248568
