Low

PHOENIX CONTACT  2970015 UMK-BE45  Connector Accessory, Module Base, UMK Series, UMK Series

PHOENIX CONTACT 2970015 UMK-BE45
Manufacturer Part No:
2970015 UMK-BE45
Order Code:
177168
Product Range
UMK Series
Technical Datasheet:
See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

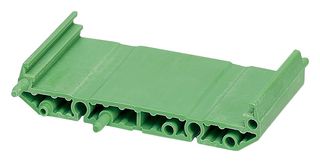

A module component that can be used to form a module that fits circuit boards 72mm wide and 1.5mm thick. Each module is made up from two side elements, plus base elements as necessary. The foot elements are fitted into the assembly as required, and provide connection to the DIN rail. The modules are quickly assembled from a small number of standard parts and enable circuit boards to be snapped on to all DIN EN mounting rails. Moulded from green 6.6 polyamide.
  • Base element
  • Width: 45mm

Product Information

Accessory Type:
Module Base
For Use With:
UMK Series
Product Range:
UMK
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Legislation and Environmental

Country of Origin:
Poland

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85366930
Weight (kg):
.01742
