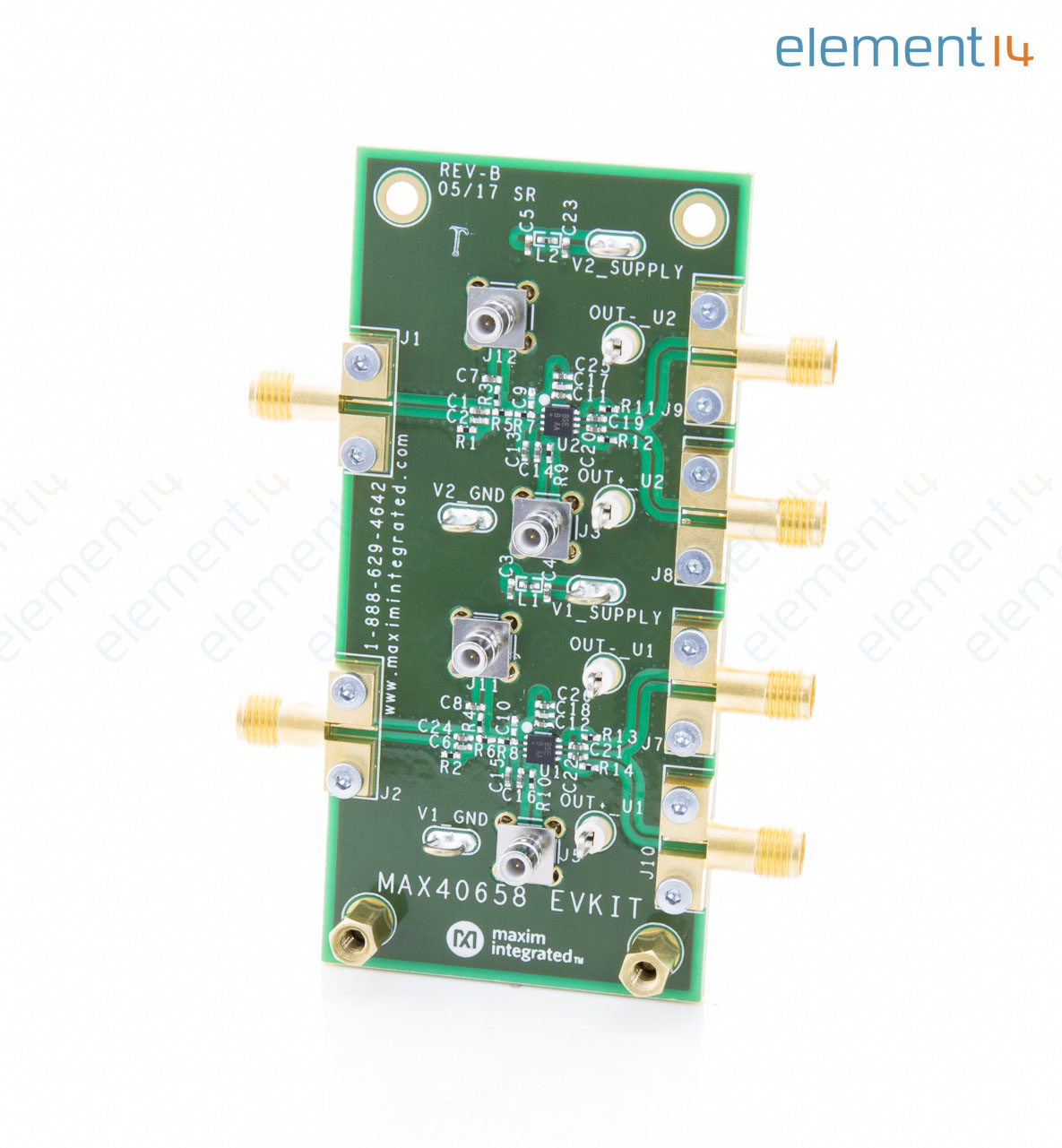

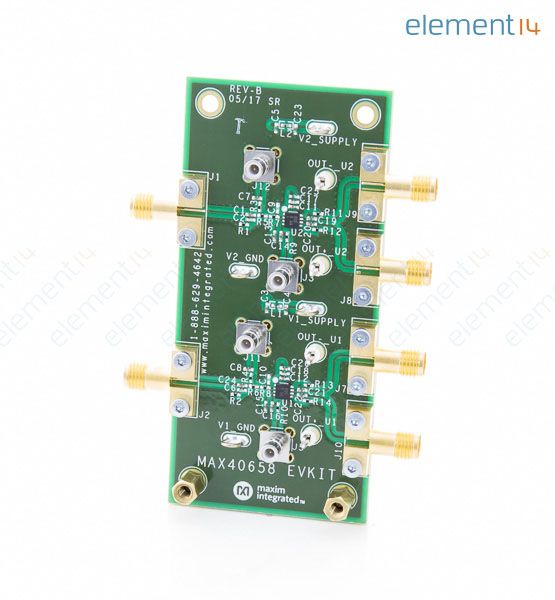

Evaluation Kit, MAX40658, Transimpedance Amplifier, 50 Ohm Interfaces, 18.3 kOhm Transimpedance


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
MAX40658EVKIT#   Datasheet
See all Technical Docs

Product Overview

The MAX40658EVKIT# is an evaluation kit (EV kit) for MAX40658. It is a fully assembled electrical demonstration kit that provides a proven design to evaluate the MAX40658 and MAX40659 transimpedance amplifier. The MAX40658 EV kit PCB comes with a MAX40658AETA+ 18.3Kohm transimpedance device installed. Typical applications include autonomous driving systems, industrial safety systems, LIDAR receivers and optical distance measurement.
  • Easy +3.3V electrical evaluation of MAX40658
  • EV kit designed for 50 ohm interfaces
  • EV kit provides an electrical interface to IC that is similar but not identical to photodiode
  • Temperature range -40°C to +85°C
  • Accommodates easy to use components
  • Proven PCB layout
  • Fully assembled and tested

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Analog Devices



Transimpedance Amplifier

Eval Board MAX40658
