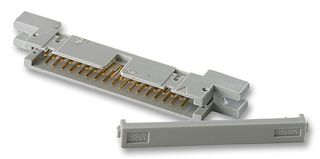

4634-6000
IDC Connector, Lugged, IDC Plug, Male, 2.54 mm, 2 Row, 34 Contacts, Cable Mount
6 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | RM59.450 |
| 10+ | RM51.120 |
| 25+ | RM48.170 |
| 50+ | RM47.290 |
Product Information
Product Overview
The 4634-6000 is a 50-way 2-row 0.100 x 0.100-inch Wire-to-board Plug for 0.050-inch pitch cable with gold-plated copper alloy contacts. The 4600 series connector comes with a glass filled polyester (PBT) insulator and accommodates 28/26AWG solid and stranded wire. It has mounting flange (standard, RIA E1 & C1 apply), open end cover (daisy chaining/bussing - standard) and military polarization (with 3518 polarizing key) for 40 contacts. The wiremount plug has been shrouded to protect against physical and chemical pin damage.
- Accepts flat cable or discrete wire
- No latch
- Gray color
- UL94V-0 Flammability rating
- 1A Current rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Industrial, Aerospace, Defence, Military
Technical Specifications
IDC Plug
2.54mm
34Contacts
Copper Alloy
4600 Series
Male
2 Row
Cable Mount
Gold Plated Contacts
No SVHC (15-Jan-2018)
Technical Docs (1)
Alternatives for 4634-6000
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:United States
