RJHSE-5080-04

Modular Connector, Right Angle, RJ45 Jack, 1 x 4 (Ganged), 8P8C, Cat5, Through Hole Mount

AMPHENOL ICC RJHSE-5080-04
×

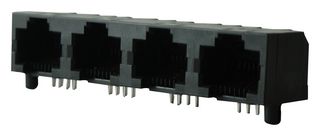

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
RJHSE-5080-04
Order Code:
2709010
Product Range
RJHSE Series
Technical Datasheet:
RJHSE-5080-04   Datasheet
See all Technical Docs

Product Range Selector (RJHSE Series)

See all from this product range

Product Overview

The RJHSE-5080-04 from Amphenol Commercial Products is a right angle mount, 8 positions modular jack with 8 contacts. It is ideal for LAN applications such as adapter cards and routers.
  • High temperature thermoplastic black colour insulator complies with UL 94V-0
  • Phosphor bronze hard temper with 50µ" gold plating
  • Contact resistance is 20mohm maximum
  • Insulation resistance is 500Mohm min at 500VDC for 2mins max
  • Current rating is 1.5Amps per contact, voltage rating is 125Volts AC
  • Through hole mount
  • Tab up, four port
  • Operating temperature range from -55°C to + 105°C, UL E135615 approved and CSA LR685398 certified
  • Durability is 750 mating & unmating cycles

Applications

Communications & Networking

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
RJ45 Jack

:
1 x 4 (Ganged)

:
8P8C

:
Cat5

:
-

:
Through Hole Mount

:
Right Angle

:
Unshielded

:
Without Magnetics

:
Without LED

:
Without Light Pipe

:
RJHSE Series

Find similar products Choose and modify the attributes above to find similar products.
