159-2801-025.

Ribbon Cable, Round 'N' Flat Jacketed, Screened, 25 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m

159-2801-025. - Ribbon Cable, Round 'N' Flat Jacketed, Screened, 25 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m

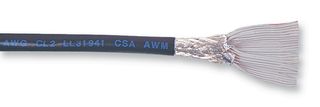

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
159-2801-025.
Order Code:
1170242
Technical Datasheet:
159-2801-025.   Datasheet
See all Technical Docs

Product Information


:
Screened

:
25Core

:
28AWG

:
0.072mm²

:
100ft

:
30.5m

:
Grey

:
31.75mm

:
7 x 36AWG

:
1.27mm

:
300V

:
Tinned Copper

:
PVC

:
Round Jacketed Flat Ribbon Cable

:
-

Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The 159-2801-025 is a 25-core shielded round N-flat Jacketed Cable with tinned copper conductor and a PVC insulator. This ribbon screened cable comes with black PVC jacket, aluminium/polyester foil and a tinned copper braid shield (85% minimum coverage). It combines the handling and shielding features of round cable and the mass termination capabilities of flat cable into a single construction. It is designed for routing in tight spaces where a round shape is more practical and where a foil braid shield is necessary to help meet FCC requirements for EMI/RFI suppression. The inner cable is extruded Spectra-Zip with alternating sections that are flat and slit. Each flat section is 3/4-inch in length with conductors on controlled spacing of 0.05 and 0.003-inch making it ideally suited for IDC mass termination methods. The flat section keep the conductor aligned for conductor positioning while the slit zip feature provides easy breakout of individual conductors.
  • CPR: Not Yet Qualified
  • High flexibility
  • 75R Impedance
  • 24pf/ft at 1MHz (78.7pf/m) Capacitance
  • 1.60ns/ft (5.25ns/m) Propagation delay

Applications

Computers & Computer Peripherals
