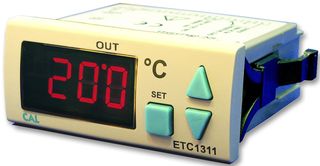

ETC1311-FE-SM7
Thermostat, ETC1311 Series, J Type Thermocouple, 9 to 30 Vdc, 8A Relay Output
Product Information
Product Overview
The ETC1311-FE-SM7 is a Digital Thermostat used to temperature control or monitor in applications that do not require accurate PID control, but where the temperature is possible to read on a clear display. This can, for example, be water baths, furnaces, climate control in computer rooms, heating food, etc. It is also used as over-temperature protection, e.g. where a regulator manages the actual control and a separate thermostat is required to give maximum safety. The thermostats can be calibrated for e.g. long cable routes (sensor adjustment). The set point value can be limited so that it cannot be increased or decreased to a forbidden level or by mistake.
- Self-extinguishing plastic enclosure
- Screw terminal connection
- Heating control
- ON/OFF control with adjustable hysteresis
- 7VA Maximum internal consumption
Applications
Industrial, Thermal Management, Automation & Process Control
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Tokelau
Country in which last significant manufacturing process was carried out
RoHS
Product Compliance Certificate
