B57276K123A30
PROBE, THERMISTOR, NTC

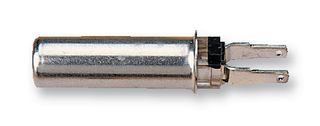

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTDK
Manufacturer Part NoB57276K123A30
Order Code9753460
Product RangeB57276K Series
Your Part Number
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerTDK
Manufacturer Part NoB57276K123A30
Order Code9753460
Product RangeB57276K Series
Technical Datasheet
Thermistor TypeNTC
Resistance (25°C)5kohm
Thermistor MountingPanel
Resistance Tolerance (25°C)± 2%
Product RangeB57276K Series
NTC MountingPanel Mount
B-Constant3760K
Thermistor TerminalsQuick Connect
B-Constant Tolerance± 1.5%
NTC Case Size-
Thermal Time Constant (in Air)15s
Probe MaterialStainless Steel
Probe Diameter9.8mm
Lead Length-
Operating Temperature Min-10°C
Operating Temperature Max100°C
Qualification-
Product Overview
The B57276K123A30 is a Temperature Measurement Probe Assembly with compact stainless steel case. Suitable for use in corrosive environments, washing machines, dish washers, tumble-dryers and water boilers.
- 80°C Rated temperature
Applications
Consumer Electronics
Technical Specifications
Thermistor Type
NTC
Thermistor Mounting
Panel
Product Range
B57276K Series
B-Constant
3760K
B-Constant Tolerance
± 1.5%
Thermal Time Constant (in Air)
15s
Probe Diameter
9.8mm
Operating Temperature Min
-10°C
Qualification
-
Resistance (25°C)
5kohm
Resistance Tolerance (25°C)
± 2%
NTC Mounting
Panel Mount
Thermistor Terminals
Quick Connect
NTC Case Size
-
Probe Material
Stainless Steel
Lead Length
-
Operating Temperature Max
100°C
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Tariff No:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.008
