2843000302
Ferrite Core, Cylindrical, 130 ohm, 10.3 mm Length, 20 MHz to 300 MHz, 3.8 mm ID

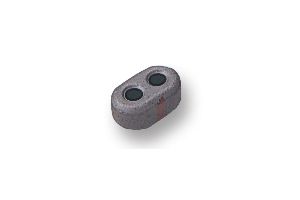

Image is for illustrative purposes only. Please refer to product description.
11,472 In Stock
Need more?
4049 Delivery in 3-4 Business Days(UK stock)
7423 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | RM2.830 |
| 10+ | RM2.220 |
| 50+ | RM1.690 |
| 100+ | RM1.520 |
| 200+ | RM1.450 |
Price for:Each
Minimum: 1
Multiple: 1
RM2.83
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The 2843000302 is a Multi-aperture Suppression Core employed in airbag designs to prevent accidental activation. This multi-aperture core controlled for impedance only, used in suppression applications and in balun (balance-unbalance) and other broadband transformers. The core in 43 material is measured for impedance on the 4193A vector impedance analyzer and suitable for use with board components.
- Supports broadband frequencies (20 to 300MHz)
- 650 Hardness
Applications
Industrial, Communications & Networking
Technical Specifications
Outer Diameter
13.3mm
Inner Diameter
3.8mm
Frequency Max
300MHz
Product Range
-
Product Length
10.3mm
Frequency Min
20MHz
Impedance
130ohm
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85049011
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003
