173113-0076

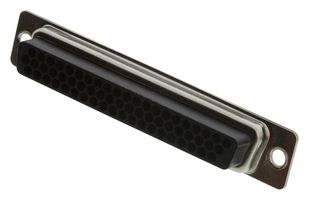

D Sub Connector Housing, 62 Ways, High Density D Sub, DC, 173113, Receptacle, Steel Body
6 In Stock
Need more?
6 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM76.740 |
| 10+ | RM66.110 |
| 25+ | RM62.790 |
| 100+ | RM57.910 |
| 250+ | RM56.430 |
| 500+ | RM53.500 |
Price for:Each
Minimum: 1
Multiple: 1
RM76.74
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No173113-0076
Order Code3214154
Product Range173113
Also Known AsCT37-62S7
Technical Datasheet
No. of Positions62Ways
Connector TypeHigh Density D Sub
Connector Shell SizeDC
Product Range173113
Connector Body MaterialSteel Body
For Use WithMolex 173112 Series 1731120226, 1731120227, 1731120228 Crimp Socket Contacts
SVHCNo SVHC (25-Jun-2025)
Product Overview
173113-0076 is a 173113 series, shielded FCT high-density D-Sub female crimp housing. Mates with FCT high-density D-Sub, Size 4, 62 position, plug. For use with 1731120226, 1731120227 and 1731120228 FCT machined contact, female, crimp.
- 6 number of row and 62 circuits (maximum)
- Black PBT resin
- Polarized to mating part
- Steel material shell
- Straight orientation
- Crimp termination style
- Flange panel mount method
- Nickel shell plating
- IP20 waterproof / dustproof type
- Operating temperature range from -55 to +105°C
Technical Specifications
No. of Positions
62Ways
Connector Shell Size
DC
Gender
Receptacle
For Use With
Molex 173112 Series 1731120226, 1731120227, 1731120228 Crimp Socket Contacts
Connector Type
High Density D Sub
Product Range
173113
Connector Body Material
Steel Body
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.015
