P25-1726
Contact, Spring Probe, 2.54 mm, Tulip, 3 A, 33.3 mm

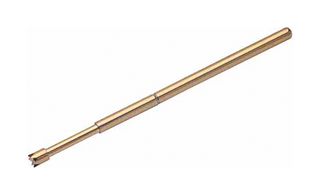

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM16.300 |
| 5+ | RM15.980 |
| 10+ | RM15.650 |
| 20+ | RM15.330 |
Price for:Each
Minimum: 1
Multiple: 1
RM16.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARWIN
Manufacturer Part NoP25-1726
Order Code3755763
Technical Datasheet
Connector TypeSpring Probe
Centreline Spacing2.54mm
Connector Tip StyleTulip
Current Rating3A
Overall Length33.3mm
Spring Force Initial-
Spring Force Working Travel-
Product Range-
SVHCLead (25-Jun-2025)
Product Overview
- ATE two-part spring probe
- 2.54mm (0.1″) minimum pitch, Ø1.5mm tulip head
- Gold finish on probe head and body
- Use with receptacle / sleeve S25-346 or S25-546
Technical Specifications
Connector Type
Spring Probe
Connector Tip Style
Tulip
Overall Length
33.3mm
Spring Force Working Travel
-
SVHC
Lead (25-Jun-2025)
Centreline Spacing
2.54mm
Current Rating
3A
Spring Force Initial
-
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0003
