P25-3226
Contact, Spring Probe, 2.54 mm, Crown - Tapered, 3 A, 33.3 mm

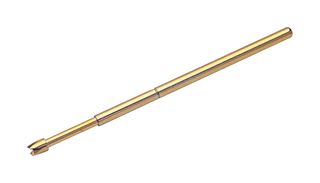

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoP25-3226
Order Code3932956
Product RangeP25-xx26 Series
Technical Datasheet
713 In Stock
Need more?
713 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM16.970 |
| 50+ | RM16.640 |
| 100+ | RM16.300 |
Price for:Each
Minimum: 1
Multiple: 1
RM16.97
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARWIN
Manufacturer Part NoP25-3226
Order Code3932956
Product RangeP25-xx26 Series
Technical Datasheet
Connector TypeSpring Probe
Centreline Spacing2.54mm
Connector Tip StyleCrown - Tapered
Current Rating3A
Overall Length33.3mm
Spring Force Initial-
Spring Force Working Travel250g
Product RangeP25-xx26 Series
SVHCLead (25-Jun-2025)
Product Overview
P25-3226 is a ATE two-part spring probe with Ø1.5mm tapered crown head.
- 2.54mm (0.1″) minimum pitch
- Gold finish on probe head and body
- Use with receptacle / sleeve S25-346 or S25-546
- 3A rated
Technical Specifications
Connector Type
Spring Probe
Connector Tip Style
Crown - Tapered
Overall Length
33.3mm
Spring Force Working Travel
250g
SVHC
Lead (25-Jun-2025)
Centreline Spacing
2.54mm
Current Rating
3A
Spring Force Initial
-
Product Range
P25-xx26 Series
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000254
