MQ172X-4SA-CV(30)

I/O Connector, Micro-Miniature, 4 Contacts, Plug, I/O, Solder, MQ172, Cable Mount

HIROSE(HRS) MQ172X-4SA-CV(30)
×
×

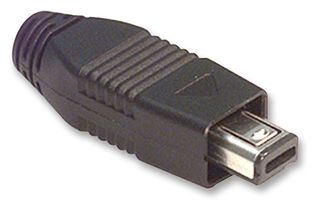

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MQ172X-4SA-CV(30)
Order Code:
2554951
Product Range
MQ172
Also Known As:
206-2001-9-30
See all Technical Docs

Product Range Selector (MQ172)

See all from this product range

Product Overview

The MQ172X-4SA-CV(50) is a 4-position female micro-miniature Interface Receptacle with black synthetic resin dielectric, gold plated phosphor bronze terminal, black synthetic resin cover case, stainless steel metal fittings and lock case. The MQ172 series connector has right angle connector orientation and standard on-board mounting side. The 2-point contact design and lead construction provide a contact which is resistant to vibration and shocks. Use of a snap-lock system provides the sensation of locking at the time of insertion. A wide selection of cable types can be utilized since the plug is of the soldered wiring type. Additionally, the plug case and cord bushing are integrated into a one piece body, allowing for easy assembly by simply pressing the case into place after the harness work. Both 3 and 4-contact types have keys to prevent incorrect insertion.
  • Ultra miniature/low profile SMT design
  • Automatic mounting
  • Reliable contact
  • High current capacity
  • Positive locking
  • Wide variety of suitable cables
  • Keys for preventing incorrect insertion
  • 3A Rated current
  • 40VAC, 30VDC Rated voltage
  • 30mR Maximum contact resistance
  • 250VAC Maximum withstanding voltage
  • 5000 Mating/unmating cycles

Applications

Portable Devices, Audio, Communications & Networking, Computers & Computer Peripherals, Consumer Electronics, Test & Measurement

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4Contacts

:
Plug (View Associated Connectors)

:
I/O

:
Solder

:
MQ172

:
Cable Mount

:
Gold Plated Contacts

:
Phosphor Bronze

Find similar products Choose and modify the attributes above to find similar products.
