TLD55421CHGSHIELDTOBO1
Evaluation Board, TLD5542-1, Buck-Boost, Analogue, PWM, 7 V to 35 V I/P, 30 V Output, 5A, 1 Output

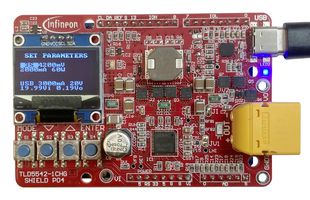

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoTLD55421CHGSHIELDTOBO1
Order Code3865677
Also Known AsSP005584350, TLD5542-1CHG_SHIELD
Technical Datasheet
3 In Stock
Need more?
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM1,009.700 |
Price for:Each
Minimum: 1
Multiple: 1
RM1,009.70
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoTLD55421CHGSHIELDTOBO1
Order Code3865677
Also Known AsSP005584350, TLD5542-1CHG_SHIELD
Technical Datasheet
Device TopologyBuck-Boost
No. of Outputs1Outputs
Output Current5A
Output Voltage30V
Input Voltage Min7Vrms
Input Voltage Max35Vrms
Core ChipTLD5542-1
Dimming Control TypeAnalogue
Kit ContentsEval Board TLD5542-1
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
TLD5542-1 charger, LED driver, voltage regulator shield for Arduino. it is a battery charger shield compatible with Arduino UNO. It can charge up to 6 lithium cells at 5A. The shield can be powered either by a USB-PD adapter, or by a standard 12V power supply and it can be configured as battery charger, adjustable voltage regulator and LED driver. A graphical OLED 128 x 64 and 4 pushbuttons are present to set parameters and check the charge status. The TLD5542-1 it’s an LED driver so the charge algorithm is completely implemented in the Arduino therefore it is highly customizable.
- Battery charger shield compatible with Arduino UNO
Technical Specifications
Device Topology
Buck-Boost
Output Current
5A
Input Voltage Min
7Vrms
Core Chip
TLD5542-1
Kit Contents
Eval Board TLD5542-1
SVHC
No SVHC (21-Jan-2025)
No. of Outputs
1Outputs
Output Voltage
30V
Input Voltage Max
35Vrms
Dimming Control Type
Analogue
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.25
