P0K1.202.3FW.A.007
RTD Sensor, Flat Wire, Class A, Component with Leads, -200 °C, 300 °C, 100 ohm, Platinum

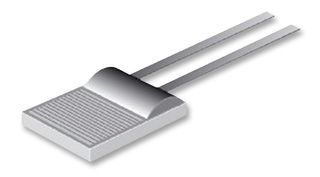

Image is for illustrative purposes only. Please refer to product description.
ManufacturerIST INNOVATIVE SENSOR TECHNOLOGY
Manufacturer Part NoP0K1.202.3FW.A.007
Order Code2191840
Product Range300°C Series
Technical Datasheet
956 In Stock
Need more?
956 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM16.370 |
| 10+ | RM14.330 |
| 25+ | RM13.840 |
| 50+ | RM13.380 |
| 100+ | RM13.170 |
| 500+ | RM12.960 |
| 1000+ | RM12.710 |
Price for:Each
Minimum: 1
Multiple: 1
RM16.37
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerIST INNOVATIVE SENSOR TECHNOLOGY
Manufacturer Part NoP0K1.202.3FW.A.007
Order Code2191840
Product Range300°C Series
Technical Datasheet
Sensing Temperature Min-200°C
RTD TypeComponent with Leads
RTD Accuracy-
Resistance100ohm
Measured Temperature Min-200°C
Measured Temperature Max300°C
Resistance @ 0°C100ohm
RTD Element MaterialPlatinum
Probe Material-
Probe Diameter-
Probe Length-
Cable Length - Metric-
Cable Length - Imperial-
Cable Termination-
Wire Configuration-
Product Range300°C Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
- P0K1.202.3FW.A.007 platinum sensor with wires for low to medium temperatures
- Excellent long-term stability
- Low self-heating
- Optimal price/performance ratio
- Operating temperature range from 200°C to +300°C
- Nominal resistance of 100 ohm at 0°C, characteristics curve of 3850ppm/K
- Long-term stability of <lt/> 0.04% at 1000h at maximal operating temperature
- Connection: Ni-flat-wire Au-coated, 0.2 x 0.4 mm (HxW) (solderable, weldable, crimpable), 7mm long
- Dimension is 2mm x 2mm x 0.65mm / 1.3mm (L x W x H / H2 in mm)
Technical Specifications
Sensing Temperature Min
-200°C
RTD Accuracy
-
Measured Temperature Min
-200°C
Resistance @ 0°C
100ohm
Probe Material
-
Probe Length
-
Cable Length - Imperial
-
Wire Configuration
-
SVHC
No SVHC (21-Jan-2025)
RTD Type
Component with Leads
Resistance
100ohm
Measured Temperature Max
300°C
RTD Element Material
Platinum
Probe Diameter
-
Cable Length - Metric
-
Cable Termination
-
Product Range
300°C Series
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:90258040
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000227
