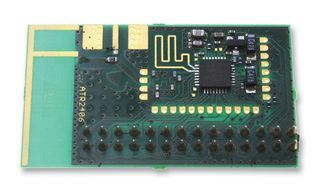

ATR2406-DEV-BOARD

The ATR2406-DEV-BOARD is a complete RF module which makes easy and convenient to evaluate the performance of ATR2406 RF IC and develop custom applications. The ATR2406 is a single chip RF transceiver intended for applications in the 2.4GHz ISM band. The QFN32 packaged IC is a complete transceiver including image rejection mixer, low IF filter, FM demodulator, RSSI, TX preamplifier, power ramping generator for external power amplifier, integrated synthesizer, and a fully integrated VCO and TX filter. No mechanical adjustment is necessary in production. The RF transceiver offers a clock recovery function on chip.

• Fully integrated low IF receiver
• Fully integrated GFSK modulator for 72, 144, 288, 576 and 1152Kbits/s
• High sensitivity of typically -93dBm due to integrated LNA
• High output power of typically +4dBm
• Multi channel operation of 95 channels
• Low current consumption
• Few low cost external components
• Integrated ramp signal generator and power control for an additional power amplifier

Applications

Hobby & Education, Wireless, Audio, Portable Devices, Consumer Electronics
