MIKROE-5134

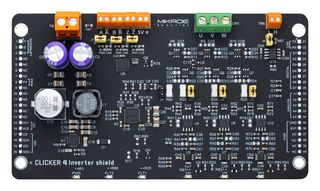

Expansion Board, Clicker 4 Inverter Shield, MIKROELEKTRONIKA Clicker 4 Series Boards
Image is for illustrative purposes only. Please refer to product description.
3 In Stock
Need more?
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM860.930 |
Price for:Each
Minimum: 1
Multiple: 1
RM860.93
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Product Overview
Clicker 4 Inverter Shield is an extension for Clicker 4 series boards from MIKROE. It is the perfect way to expand the functionalities of your Clicker 4 board to provide highly efficient control and drive solutions for brushless DC (BLDC) motors. The board features a 3-phase inverter using Toshiba's low RDS(ON) power MOSFETs, used in combination with an integrated gate driver easily configurable through the SPI interface. It also carries an incremental encoder receiver, and a CAN transceiver, rounding out the functionality of the board ideal for various motor control applications.
- Input voltage range from 12V to 48VDC
Technical Docs (2)
Legislation and Environmental
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000086
