4650-24-2
Test Lead, Minigrabber, Miniature Hook Clip to 4mm Banana Plug, Red, 300 Vrms, 5 A, 610 mm
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM68.720 |
Product Information
Product Overview

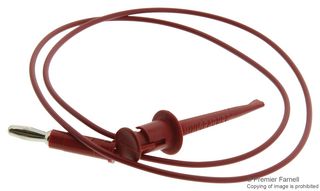

The 4650-24-2 is a 24-inch Test Lead with Minigrabber® test clip to in-line banana plug. The first end miniature test clip with gold-plated beryllium copper contact, moulded glass filled nylon insulation, 20AWG stranding tinned copper extra flexible polyvinyl insulated 2.21-inch outer diameter wire. The second end banana plug with one piece heat treated beryllium copper spring, nickel-plated brass plug body, polypropylene moulded to plug body and wire insulation. Ideal for connecting terminals and wire wrap post to test equipment.
- Red insulator
- 300Vrms/DC Operating voltage
- 55°C Maximum operating temperature
Applications
Industrial, Test & Measurement
Notes
Exclusive 5% discount (already applied) on selected items from the Pomona Electronics range, valid until 31/12/2026. Terms and conditions apply.
Technical Specifications
Miniature Hook Clip
24"
Red
300Vrms
No SVHC (15-Jun-2015)
4mm Banana Plug
610mm
5A
4650 Series
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
RoHS
Product Compliance Certificate
