1-1437719-5

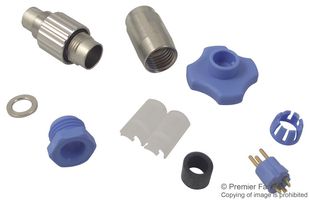

Circular Connector, T01 Series, Cable Mount Plug, 3 Contacts, Solder Pin, Brass Body

TE CONNECTIVITY 1-1437719-5
TE CONNECTIVITY 1-1437719-5
TE CONNECTIVITY 1-1437719-5
TE CONNECTIVITY 1-1437719-5
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
1-1437719-5
Order Code:
130722
Product Range
T01 Series
Technical Datasheet:
1-1437719-5   Datasheet
See all Technical Docs

Product Range Selector (T01 Series)

See all from this product range

Product Overview

The 1-1437719-5 is a 3-position male shielded subminiature Circular Connector with pin type contacts, CuZn shell and 24AWG wire size. The small and lightweight system is available as panel-mount headers with solid posts 180degree and 90degree for soldering on PC boards and also with solder cups for wire termination. The PCB version has two board locks and the solder cup version has two solder tabs for grounding. Through the three O-ring design on the panel-mount connectors and in connection with the over-moulded cable assemblies, TRIADTM01 is a liquid and dust tight system according to IP65 protection class (DIN 40050). The reasonable shielding, the small diameters, the over-moulded connector with cable and the use of metallic parts makes TRIADTM01 also useable in harsh environments such as a factory where TRIADTM01 can be used in BUS applications such as CAN or MODULAR too.
  • Small and lightweight, shielded round connector system
  • <6mR Contact resistance
  • 60VAC Operating voltage
  • 625VAC Test voltage
  • <=500 Mating cycles
  • Screw type interlock
  • UL94V-2 Flammability rating

Applications

Medical, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
T01 Series

:
Cable Mount Plug

:
3Contacts

:
Solder Pin

:
-

:
Brass Body

:
-

:
-

:
Gold

Find similar products Choose and modify the attributes above to find similar products.
