57 20140

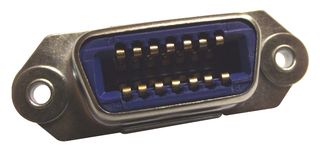

The 57 20140 is a 14-position mini D Ribbon Connector, 57 series, float-mounted receptacle. The micro-ribbon connector offers a fast economical and distinctively different method of achieving electrical interconnection. The heart of the connector is the ribbon contact, selectively plated gold over nickel on a copper alloy base. With contacts designed to mate easily and positively, the 57 series micro-ribbon connector delivers electrically and mechanically sound interconnections time after time.

• Metal shells for improved EMI/RFI connector shielding
• Zinc-plated steel outer shell, with clear chromate finish, for corrosion resistance
• Wide/flat mating surfaces, pressed tightly together by flexing action of both contacts
• Hooked contacts recessed in body to prevent mating damage
• Coded contacts to assist wiring identification
• 5A Current capacity per contact
• -55 to +105°C Operating temperature range
• UL Approved

Applications

Communications & Networking, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
