A000080

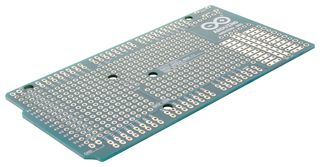

PROTO BOARD, ARDUINO MEGA, REV 3

A000080 - PROTO BOARD, ARDUINO MEGA, REV 3
A000080 - PROTO BOARD, ARDUINO MEGA, REV 3

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ARDUINO ARDUINO
Manufacturer Part No:
A000080
Order Code:
2285197
Technical Datasheet:
A000080   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-

:
-

:
-

:
-

:
-

:
Arduino MEGA Development Boards

:
Prototyping Board

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The A000080 is an Arduino MEGA Proto Shield Rev3 PCB. It makes easy for user to design their custom circuits. The user can solder parts to the prototyping area to create their project or use it with a small solderless breadboard to quickly test circuit ideas without solder. The PCB has extra connections for all of the Arduino I/O pins and has a space to mount through hole and surface mount integrated circuits. It's a convenient way for the user to make own custom circuit and Arduino MEGA into a single module.
  • Board size is 101.52mm x 53.3mm
  • ICSP header and two 14 pin SOIC prototyping areas
  • Long and easy shield to solder ground/5V rails

Applications

Embedded Design & Development, Hobby & Education
