HBA68MFZRE

Through Hole Resistor, 68 Mohm, HB Series, 800 mW, ± 1%, Radial Leaded, 1 kV

HBA68MFZRE - Through Hole Resistor, 68 Mohm, HB Series, 800 mW, ± 1%, Radial Leaded, 1 kV

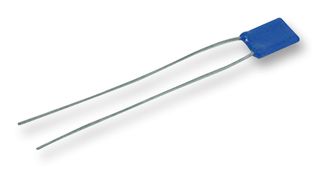

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
HBA68MFZRE
Order Code:
1502909
Product Range
HB Series
Also Known As:
1-1625960-1, HBA RE 68M 1% 100PPM
Technical Datasheet:
HBA68MFZRE   Datasheet
See all Technical Docs

Product Range Selector (HB Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
68Mohm

:
HB Series

:
800mW

:
± 1%

:
Radial Leaded

:
1kV

:
Thick Film

:
± 100ppm/°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The HB series from CGS - TE Connectivity are high value / high voltage resistors. The HB series are tough epoxy coated high voltage resistor with axial or radial leads values up to 1Gohm and an operational voltage to 20KV as standard. The resistors are made from quality materials for optimum reliability and stability. It is used for high frequency applications and to supply information for high voltage use. Typical applications include high voltage, voltage divider, surge, filter, balancing and inrush limiting circuits.
  • Resistance range from 1Kohm to 1Gohm
  • ±1%, ±2 and ±5% standard tolerances
  • Element voltage up to 15KV
  • High ratio of size to power
  • Established product with proven reliability
  • Low inductance for the fastest switching speeds
  • Temperature coefficient is ±100ppm/°C
  • Operating temperature range form -55°C to 125°C
  • High voltage resistor

Also Known As

1-1625960-1, HBA RE 68M 1% 100PPM
