TDC180-3A
Fuse, Cartridge, Fast Acting, 3 A, 240 V, 6.3mm x 25.4mm, 1/4" x 1", TDC180
Image is for illustrative purposes only. Please refer to product description.
3,226 In Stock
3,000 more incoming. You can reserve stock now
79 Delivery in 1-2 Business Days(SG stock)
3147 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | RM3.690 |
| 50+ | RM3.650 |
| 100+ | RM3.610 |
| 500+ | RM3.540 |
Price for:Each
Minimum: 10
Multiple: 10
RM36.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON BUSSMANN
Manufacturer Part NoTDC180-3A
Order Code1123033
Fuse Current3A
Voltage Rating VAC240V
Fuse Size Metric6.3mm x 25.4mm
Fuse Size Imperial1/4" x 1"
Breaking Capacity Current AC6kA
Product Overview

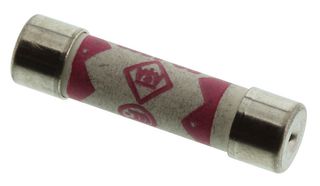

The C180-3 from Bussmann is a red colour fast/medium british plug top fuse. It has ceramic tube construction with nickel plated brass end caps. This fuse is approved by Asta, BS1362, IEC 269-3A, CCC and CE standards.
- Fuse current is 3A
- Rated voltage is 240VAC
- Fuse size is 6.3mm x 25.4mm
- Breaking capacity of 6000A at 264VAC, 50Hz
- Maximum power dissipation of 1W
Applications
Safety
Technical Specifications
Fuse Current
3A
Fuse Size Metric
6.3mm x 25.4mm
Breaking Capacity Current AC
6kA
Voltage Rating VAC
240V
Fuse Size Imperial
1/4" x 1"
Technical Docs (1)
Alternatives for TDC180-3A
1 Product Found
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85361010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00244
