12.000MHZ MJ/30/30/-40+85/12PF/ATF
Crystal, 12 MHz, SMD, 5mm x 3.2mm, 30 ppm, 12 pF, 30 ppm, MJ

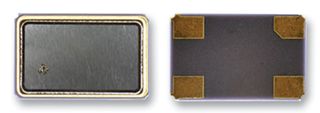

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEUROQUARTZ
Manufacturer Part No12.000MHZ MJ/30/30/-40+85/12PF/ATF
Order Code1640927
Product RangeMJ
Technical Datasheet
1,445 In Stock
1,000 more incoming. You can reserve stock now
45 Delivery in 1-2 Business Days(SG stock)
1400 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM7.980 |
| 10+ | RM6.980 |
| 25+ | RM6.800 |
| 50+ | RM6.610 |
| 100+ | RM6.230 |
| 250+ | RM5.890 |
| 1250+ | RM5.530 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
RM7.98
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEUROQUARTZ
Manufacturer Part No12.000MHZ MJ/30/30/-40+85/12PF/ATF
Order Code1640927
Product RangeMJ
Technical Datasheet
Frequency Nom12MHz
Crystal CaseSMD, 5mm x 3.2mm
Frequency Stability + / -30ppm
Load Capacitance12pF
Frequency Tolerance + / -30ppm
Product RangeMJ
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 12.000MHZ MJ/30/30/40/12PF is a 5 x 3.2 x 0.9mm 30ppm miniature surface-mount Quartz Crystal produced with a ceramic substrate and seam-welded metal lid. The MJ series crystal is high shock and vibration resistance and its compact size and low mass make it an ideal crystal for high-density applications.
- Fundamental operation mode
- 50Ω Maximum equivalent series resistance
- 5pF Maximum shunt capacitance
- 100µW Maximum drive level
Applications
Clock & Timing
Technical Specifications
Frequency Nom
12MHz
Frequency Stability + / -
30ppm
Frequency Tolerance + / -
30ppm
Operating Temperature Min
-40°C
SVHC
No SVHC (23-Jan-2024)
Crystal Case
SMD, 5mm x 3.2mm
Load Capacitance
12pF
Product Range
MJ
Operating Temperature Max
85°C
Technical Docs (1)
Alternatives for 12.000MHZ MJ/30/30/-40+85/12PF/ATF
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000127
