H772LA/7.6
Contact, Connector, Receptacle, Test Socket, 5 A

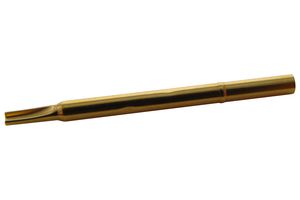

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerFEINMETALL
Manufacturer Part NoH772LA/7.6
Order Code1313724
Technical Datasheet
Connector TypeTest Socket
Centreline Spacing-
Connector Tip Style-
Current Rating5A
Overall Length-
Spring Force Initial-
Spring Force Working Travel-
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The H772LA is a standard Probe for in-circuit and functional test (ICT/FCT). It is used in dual-stage fixtures together with F797. The receptacle H772 permits a variable projection height and it is used for a fixed projection height 10mm. This probe is identical to the threaded probe F732.
- Gold-plated nickel silver barrel
- Silver-plated music wire spring
- 25mΩ Typical probe resistance
- 16A Constant current
Applications
Industrial, Test & Measurement
Technical Specifications
Connector Type
Test Socket
Connector Tip Style
-
Overall Length
-
Spring Force Working Travel
-
SVHC
No SVHC (17-Jan-2023)
Centreline Spacing
-
Current Rating
5A
Spring Force Initial
-
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000199
