PT4 6X150-KNE
RTD Sensor, RTD, Pt100, Terminal Head, Probe, Class B, -50 °C, 450 °C, 100 ohm, Platinum
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM464.640 |
| 5+ | RM453.940 |
| 10+ | RM431.510 |
| 25+ | RM404.690 |
| 50+ | RM390.470 |
| 100+ | RM382.360 |
Product Information
Product Overview

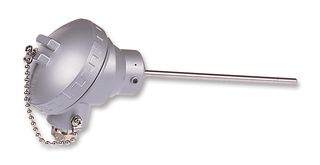

The PT4 6X150-KNE is an Industrial Probe with waterproof aluminium terminal head. The head of the probe contains a terminal block allowing connection to the measuring instrument via a M20 gland. This range of industrial probe is suitable for a wide range of applications. For use up to 450°C, the probe is recommended where the superior accuracy of Pt100s over thermocouples is required. The assemblies utilises a 6mm diameter stainless steel stem below a waterproof terminal head. The head contains a terminal block allowing connection to the measuring instrument via a M20 cable gland.
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
Probe
Class B
Stainless Steel
450°C
Platinum
6mm
-
Terminal Block
-
150mm
6mm
-50°C
100ohm
316 Stainless Steel
150mm
-
4-Wire
No SVHC (21-Jan-2025)
