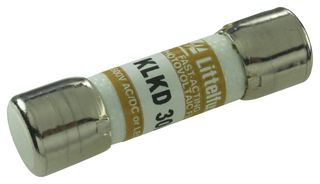

KLKD030.T
Fuse, Industrial / Power, POWR-GARD KLKD, 30 A, 600 VAC, 600 VDC, 10mm x 38mm, 13/32" x 1-1/2"
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoKLKD030.T
Order Code1818414
Product RangePOWR-GARD KLKD
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM180.080 |
Price for:Each
Minimum: 1
Multiple: 1
RM180.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoKLKD030.T
Order Code1818414
Product RangePOWR-GARD KLKD
Technical Datasheet
Product RangePOWR-GARD KLKD
Fuse Current30A
Voltage Rating VAC600VAC
Voltage Rating VDC600VDC
Fuse Size Metric10mm x 38mm
Fuse Size Imperial13/32" x 1-1/2"
Blow CharacteristicFast Acting
SVHCNo SVHC (17-Dec-2014)
Product Overview
The POWR-GARD KLKD series Fast Acting Fuse with a high DC voltage rating available in standard and board-mount configurations. It is used in solar combiner boxes and in circuits with DC fault currents up to 50000A.
- 50000A Interrupting rating
- Available in ferrule or PCB mount options
- 1-5 A meets UL1741 GFDI requirements
- Designed to UL and IEC photovoltaic specifications
Applications
Safety, Consumer Electronics, Power Management, Computers & Computer Peripherals
Technical Specifications
Product Range
POWR-GARD KLKD
Voltage Rating VAC
600VAC
Fuse Size Metric
10mm x 38mm
Blow Characteristic
Fast Acting
Fuse Current
30A
Voltage Rating VDC
600VDC
Fuse Size Imperial
13/32" x 1-1/2"
SVHC
No SVHC (17-Dec-2014)
Technical Docs (2)
Alternatives for KLKD030.T
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85361050
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.009072
