MIC2940A-5.0WT
Fixed LDO Voltage Regulator, 2V to 26V, 350 µV Dropout, 5Vout, 1.25Aout, TO-220-3

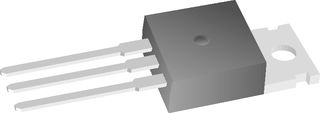

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMICREL SEMICONDUCTOR
Manufacturer Part NoMIC2940A-5.0WT
Order Code1556712
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMICREL SEMICONDUCTOR
Manufacturer Part NoMIC2940A-5.0WT
Order Code1556712
Technical Datasheet
Output Voltage Nom5V
Output Voltage - Nom5V
PolarityPositive Output
Max Output Current1.25A
Dropout Voltage Typ @ Current400mV
Dropout Voltage - Typ @ Current400mV
Alternatives for MIC2940A-5.0WT
1 Product Found
Product Overview
The MIC2940A-5.0WT is a 5V fixed output bulletproof efficient Linear Regulator with very low-dropout (LDO) voltage (typically 40mV at light loads and 350mV at 1A) and low quiescent current (240µA typical). The quiescent current of the device increases only slightly in dropout, thus prolonging battery life. The device features include protection against reversed battery, fold-back current limiting and automotive "load dump" protection (60V positive transient).
- High output voltage accuracy
- Extremely tight load and line regulation
- Very low temperature coefficient
- Input can withstand -20V reverse battery and +60V positive transients
- Logic-controlled electronic shutdown
Applications
Portable Devices, Computers & Computer Peripherals, Consumer Electronics, Automotive, Industrial, Power Management
Technical Specifications
Output Voltage Nom
5V
Polarity
Positive Output
Dropout Voltage Typ @ Current
400mV
Output Voltage - Nom
5V
Max Output Current
1.25A
Dropout Voltage - Typ @ Current
400mV
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Tariff No:85423990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002041
