502579-0000

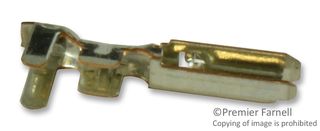

Contact, CLIK-Mate™, CLIK-Mate 502579, Pin, Crimp, 24 AWG, Tin Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No502579-0000
Order Code2358075
Product RangeCLIK-Mate 502579
Also Known AsGTIN UPC EAN: 800756642857
Technical Datasheet
75,000 In Stock
30,000 more incoming. You can reserve stock now
75000 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 15000+ | RM0.092 |
| 75000+ | RM0.090 |
Price for:Each (Supplied on Full Reel)
Minimum: 15000
Multiple: 15000
RM1,380.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No502579-0000
Order Code2358075
Product RangeCLIK-Mate 502579
Also Known AsGTIN UPC EAN: 800756642857
Technical Datasheet
Product RangeCLIK-Mate 502579
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max24AWG
Contact PlatingTin Plated Contacts
For Use WithMolex CLIK-Mate 502578 & 503149 Series Housing Connectors
Wire Size AWG Min28AWG
Contact MaterialCopper Alloy
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 502579-0000 is a wire-to-board crimp terminal made of copper alloy with tin-plated finish. It can be used with 502578 crimp housing and accepts 24 to 28AWG wire.
- 2A current (maximum)
- Voltage (maximum) is 100V
Applications
Automotive, Consumer Electronics, Industrial, Lighting, Medical
Technical Specifications
Product Range
CLIK-Mate 502579
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
28AWG
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Pin
Wire Size AWG Max
24AWG
For Use With
Molex CLIK-Mate 502578 & 503149 Series Housing Connectors
Contact Material
Copper Alloy
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000095
