MP-MS-213-3-1-0500

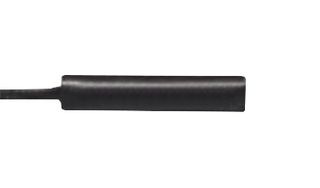

Reed Sensor, Miniature, Tubular, Cable, 10-15 AT, NO, -20°C to 85°C
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-MS-213-3-1-0500
Order Code4261438
Product RangeMP Reed Sensors
Your Part Number
Technical Datasheet
40 In Stock
Need more?
40 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM18.390 |
| 10+ | RM15.140 |
| 25+ | RM14.420 |
| 50+ | RM13.900 |
| 100+ | RM13.250 |
Price for:Each
Minimum: 1
Multiple: 1
RM18.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-MS-213-3-1-0500
Order Code4261438
Product RangeMP Reed Sensors
Technical Datasheet
Sensor TypeReed Switch
Sensing Distance Max-
Sensor MountingCable
Supply Current-
Operating Temperature Min-20°C
Operating Temperature Max85°C
Product RangeMP Reed Sensors
SVHCNo SVHC (21-Jan-2025)
Product Overview
MP-MS-213-3-1-0500 is a tubular, reed sensor switch. The magnetic reed sensor contains a magnetic reed switch within an enclosed housing. The housing ensures better mechanical protection and facilitates assembly. This reed sensor is a versatile switching solution, suitable for a wide variety of applications. Typical applications include position control, non-touch switching, flow detection, level sensing, and speed measuring (RPM). This reed sensor is easy to mount and IP67-rated.
- Easy mounting and fixing, fitted with wire leads, compact size
- Compact housing, mechanically protected
- UL approval, replaces various competitors types
- 10W/V maximum contact rating, max switching voltage is 180VDC, 130VAC
- 0.7A maximum switching current, 200VDC minimum breakdown voltage
- 300mohm maximum total resistance (initial), 10⁹ ohm minimum insulation resistance
- Switching frequency is 500Hz maximum (25°C)
- Resonant frequency is 5000Hz typical (25°C), 1 = 10 to 15 AT range
- ABS housing, UL 1061, AWG 26, 4mm stripped and tinned cable, epoxy potting compound
- Operating temperature range from -20 to +85°C
Applications
Industrial, Automation & Process Control, Automotive, Safety
Contents
x1 Reed sensor, tubular.
Notes
Versatile and cost-effective solution for a variety of applications.
Technical Specifications
Sensor Type
Reed Switch
Sensor Mounting
Cable
Operating Temperature Min
-20°C
Product Range
MP Reed Sensors
Sensing Distance Max
-
Supply Current
-
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
