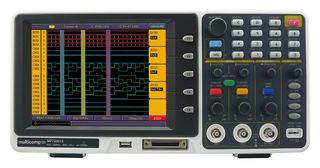

MULTICOMP PRO MP720013 EU-UKMixed Signal Oscilloscope, 2 Analogue + 16 Digital Channels, 100MHz, 1 GSPS, EU/UK Plug

MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
MULTICOMP PRO MP720013 EU-UK
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MP720013 EU-UK
Order Code:
3107572
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
MP720013 EU-UK   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
TUK SGACK902S Keystone Coupler

:
2 Analogue, 16 Digital, 1 Ext Trigger

:
100MHz

:
1GSPS

:
2 Mpts

:
3.5ns

:
LCD Colour

:
MSO, LA, Power Cord, USB Cable, CD-Rom.Manual, Probes, Probe Adjust Tool, Optional Acc: Soft Bag

:
1 Year

:
EU, UK

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

The Multicomp Pro MP720013 is a 2-in-1, 8-bit, 100MHz mixed signal oscilloscope with logic analyser. Featuring an 8" colour LCD display, USB data transmission support, 20 group automatic measurement options, auto-scale functionality, FFT and 16 digital channels.
  • Large 8" LCD colour display (640x480)
  • Supports multiple trigger modes including bus, status, data alignment, data width and distributed queue
  • 100MHz logic analyzer - 20S/s-2GS/s sample rate (real time), 16 channels and record length of 4M points
  • Horizontal scale (s/div) - 2ns/div~100s/div, step by 1~2~5
  • 2M record length
  • 8 bit vertical resolution (A/D) (2 channels simultaneously)
  • 2mV/div~10V/div vertical resolution (A/D)
  • Edge, video, alternatie, pulse and slope trigger modes
  • Normal, peak detect and average acquisition modes
  • 4 waveform storage
  • Dimensions - 370 x 180 x 120mm
  • Device weight - 2.2kg

Contents

Mixed Signal Oscilloscope, 2x Passive Probes, Passive Probe Manual, Logic Analyzer Measurement Module, Module Instructions, Accessories Bag, Operating Instructions, CD-ROM, UK & EU Power Cords
