789885-01

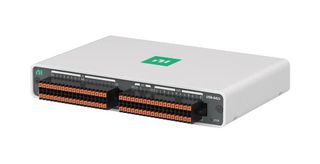

789885-01 is a 16bit, 250ks/s (16AI, 2 AO, 16 DIO) mioDAQ, USB-6421 multifunction I/O device. The USB-6421 is a USB type-C bus powered mioDAQ device with analogue I/O, digital I/O and four counters. It features analogue input channels with four input range settings from ±200mV to ±10V and analogue output channels that can output ±10V with update rates of 250ks/s/ch. Additionally, the USB-6421 digital I/O channels can function as static input or output channels, hardware-timed channels up to 10MHz, or as triggers, clocks or I/O for the four onboard counters. The USB-6421 also supports Flex Logger Lite, free data acquisition software from NI and includes documented APIs and examples for LabView, Python, C/C++ and more.

• Engineers use mioDAQ to take ±10V measurements build electromechanical test systems
• 2x 50-pin, 0.100" x 0.100" ribbon cable header
• 2.61mV analogue input absolute accuracy
• Dimension is 109.22mm x 167mm x 13.6mm (4.3" x 6.58" x 0.14")
