SECO-1KW-MCTRL-GEVB

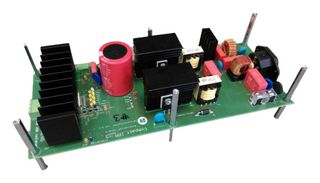

EVAL BOARD, IPM W/PFC, MOTOR CONTROL

ON SEMICONDUCTOR SECO-1KW-MCTRL-GEVB

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
SECO-1KW-MCTRL-GEVB
Order Code:
3367877

Product Overview

Compact intelligent power module based motor evaluation board with interleaved power factor correction. It is a complex solution which allows to control different types of motors (AC induction motor, PMSM, BLDC) by using various control algorithms implemented to microcontroller which can be connected via Arduino Due headers. The board was developed to support customers during their first steps designing application with IPM and PFC. The board is intended for functional testing under laboratory conditions and by trained specialists only.
  • 850W complete motor control solution with AC mains supply 230Vrms ±15 %, EMI filter
  • 2-channel interleaved power factor correction (PFC)
  • Highly integrated power module NFAQ1060L36T containing an inverter power stage in a DIP-S3 package
  • PFC stage using NCP1632 controller, FCPF125N65S3 NMOS power transistors and FFSPF1065A diodes
  • DC/DC converter producing auxiliary power supply 15VDC non-isolated buck converter using NCP1063
  • 3 phase current measurement using 3xNCS2003 operational amplifier
  • Overcurrent protection using NCS2250 comparator
