MK20/1-C-100W
Reed Switch, MK20 Series, Cylindrical, SPST-NO, 10 W, 30 Vdc, 0.5 A, 25 to 35 AT

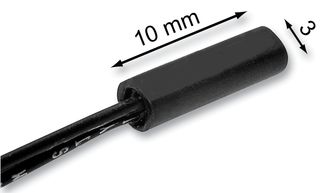

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK20/1-C-100W
Order Code1447649
Product RangeMK20 Series
Technical Datasheet
4,017 In Stock
Need more?
4017 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM44.230 |
| 5+ | RM40.980 |
| 10+ | RM37.730 |
| 20+ | RM37.310 |
| 50+ | RM36.880 |
Price for:Each
Minimum: 1
Multiple: 1
RM44.23
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK20/1-C-100W
Order Code1447649
Product RangeMK20 Series
Technical Datasheet
Sensor TypeMiniature Reed Sensor
Sensing Distance Max-
Sensor Mounting-
Supply Current500mA
Operating Temperature Min-5°C
Operating Temperature Max80°C
Product RangeMK20 Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The MK20/1-C-100W is a black Cylindrical Reed Sensor with PBT 30% GF housing and PVC single wire cable. This MK20/1-series reed sensor is magnetic sensitivity with changeover SPST-NO and termination. Suitable for door and window contacts, with magnetic floats for water level detection and position sensing.
- Contact form: 1A (SPST) Normally Open (N.O.)
- Operating Range: 10-60AT
- 10W Maximum power rating
- 200mΩ Maximum contact resistance
- 10⁹Ω Insulation resistance
Applications
Sensing & Instrumentation, Consumer Electronics, Industrial, Security
Technical Specifications
Sensor Type
Miniature Reed Sensor
Sensor Mounting
-
Operating Temperature Min
-5°C
Product Range
MK20 Series
Sensing Distance Max
-
Supply Current
500mA
Operating Temperature Max
80°C
SVHC
No SVHC (17-Jan-2023)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85364110
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000635
