2120892-1
Modular Connector, IP20, Cat6a, RJ45 Wired Plug, 1 x 1 (Port), 8P8C, Cat6a, IP20, Cable Mount

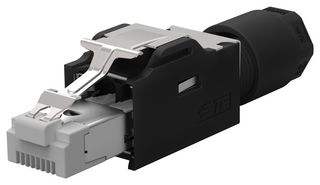

Image is for illustrative purposes only. Please refer to product description.
68 In Stock
Need more?
68 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM209.060 |
Price for:Each
Minimum: 1
Multiple: 1
RM209.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2120892-1
Order Code2768198
Technical Datasheet
Modular Connector TypeRJ45 Wired Plug
Port Configuration1 x 1 (Port)
No. of Positions / Loaded Contacts (per Port)8P8C
LAN CategoryCat6a
IP RatingIP20
Connector MountingCable Mount
Connector OrientationVertical
ShieldingShielded
MagneticsWithout Magnetics
LEDsWithout LED
Light PipesWithout Light Pipe
Product Range-
SVHC2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (21-Jan-2025)
Product Overview
TE Connectivity’s latest Industrial IP20 RJ45 Cat6a plug is based on “common core” technology and it can be terminated tool-less with Cat6a cables in the field. This solution includes an automatic wire cutoff function, which, upon closing the core housing, the excess wire is cut off at the same time the wires are connected to the plug contacts. It can handle 10 Gbps bit rates, supporting bandwidths of up to 500 MHz.
- Broad range of wires (AWG 26 to AWG 22, solid and stranded) can be terminated without the use of tools
- Supported wire insulation diameters of 0.88 - 1.5mm
- Range of cable diameters supported 5.8 - 8.2 mm
- Operating Temperature: -40 to +85 °C
- Supports 750 mating cycles minimum
- Housing: Thermoplastic (UL94 V0)
- Housing latch: Stainless Steel
Applications
Industrial, Telecommunications, Communications & Networking, Consumer Electronics
Technical Specifications
Modular Connector Type
RJ45 Wired Plug
No. of Positions / Loaded Contacts (per Port)
8P8C
IP Rating
IP20
Connector Orientation
Vertical
Magnetics
Without Magnetics
Light Pipes
Without Light Pipe
SVHC
2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (21-Jan-2025)
Port Configuration
1 x 1 (Port)
LAN Category
Cat6a
Connector Mounting
Cable Mount
Shielding
Shielded
LEDs
Without LED
Product Range
-
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Poland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Poland
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.095254
