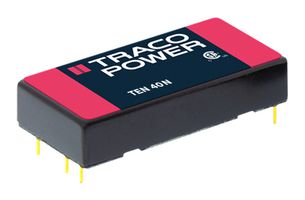

TEN 40-4822N

TEN 40N series is a new range of isolated high performance DC to DC converter modules. Due to the very high efficiency of these 40W converters come with a footprint of only 1.0” x 2.0”. The models have a wide 2:1 input voltage range and a tight output voltage regulation. The output voltage is adjustable by external resistor. Remote on/off and protection against overpower and overvoltage are standard features of these converters. Typical applications are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical. It complies with IEC/EN 60950-1 (2nd Ed) + A1:2009, UL 62368-1, CAN/CSA-C22.2 No 60950-1-07 + Am1:2011 and UL 60950-1, (2nd Ed) + Am1:2011 safety standards.

• Highest power density: 40W in 1” x 2” x 0.4” package
• Excellent efficiency
• Adjustable output voltage
• Short circuit protection and overvoltage protection
• I/O isolation voltage of 1500VDC
• Operating temperature range from -40°C to +80°C
• 3-year product warranty
• Switching frequency (fixed) of 320KHz typ (pulse width modulation PWM)
• Aluminium casing material, epoxy (UL 94V-0 rated) potting material
