We provide design kits made by some of our ferrite manufacturers, to allow both testing and designing for various applications and ferrite types.

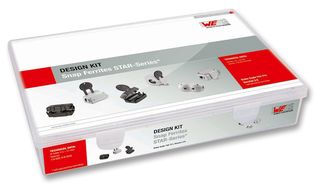

The Würth Elektronik 742711 is an Anti-EMI Design Kit with patented key technology, for 2.5 to 27mm diameter cables. Suitable for STAR-Series snap ferrites. In a sturdy metal case, completely labelled. Ideal for design and test purposes. Perfect for use in EMC labs.
The EMI ENG KIT 02 from KEMET is a B-20 series bead EMI cores kit. It includes in total 180 ESD-SR series snap-on EMI cores (20 each of 9 values). KEMET B-20 Series bead cores are designed for use on round cable. The wide range of manganese zinc (MnZn) and nickel zinc (NiZn) options allows for targeting of specific frequency ranges.
Use the kit to address issues of noise or electromagnetic interference (EMI) in circuits or systems.
The Würth Elektronik 742793 design kit includes SMD ferrites for inrush peak currents. It contains WE-MPSB Power Supply Bead, WE-PBF Ferrite Bead, WE-SUKW SMT EMI Supply 5-Hole Ferrite Bead, and WE-CMS Beads.
The Fair-Rite Expanded Cable and Connector EMI Suppressor Kit is the manufacturer’s most popular engineering kit. As the name implies this kit provides a broad sampling of suppression cores specifically designed to attenuate EMI between all types of cable connected systems. To assemble the split cable suppression cores, polypropylene cases and steel clips are included in this kit.
The MuRata EKDMGN09-KIT contains 1420 pieces of LQP02HQ Series Power Inductors.
