CY4541
Evaluation Kit, CCG4 Dual Port Type-C Power Delivery MCU's, CCG4 Daughter Card, USB 3.0
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | CY4541Copy |
| Manufacturer Standard Lead Time | 50 weeks |
| Order Code | 2768067 |
| Your Part Number |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM1,269.280 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | CY4541Copy |
| Manufacturer Standard Lead Time | 50 weeks |
| Order Code | 2768067 |
| Silicon Manufacturer | Cypress |
| Silicon Core Number | CYPD4225-40LQXIT, CY7C65215 |
| Kit Application Type | Interface |
| Application Sub Type | USB Power Delivery (PD) Controller |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0 |
| Silicon Family Name | CCG4 |
| Kit Contents | 2 x CCG EVK Base Boards, CY4541 CCG4 Daughter Card, Pwr Adapter, USB Cables & Adapters, Jumper Wires |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The CY4541 from Cypress Semiconductor is a EZ-PD™ CCG4 evaluation kit (EVK) based on the Cypress's CCG4 dual port Type-C Power Delivery (PD) controllers. The EZ-PD™ CCG4 is a dual USB Type-C controller that complies with the latest USB Type-C and PD standards. This EVK is primarily intended to be a demonstration vehicle for Type-C PC designs that house one or two Type-C ports. CCG4 can act either as a power provider (source) or as a power consumer (sink). The kit also helps to evaluate several features on two type-C ports, using a Dual Role Port (DRP) or SuperSpeed USB demo and a DisplayPort demo. The CY4541 EZ-PD™ CCG4 evaluation kit enables designers to exercise the functionality of CCG4 controllers for a Two-port USB type-C based host system.
Applications
Communications & Networking, Embedded Design & Development
Contents

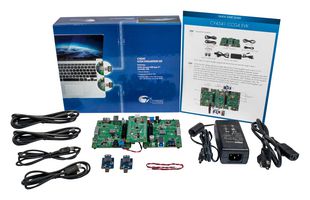

Two CCG EVK base board (display port mux, Power management and USB type-B connector), CY4541 CCG4 daughter card, 24VDC power adapter, Two USB 3.0 Type-A to Type-B cable, Two USB Type-C to Type-A adapter, USB 3.0 EMCA Type-C cable, USB 2.0 Type-A to mini-B cable, Two pair of jumper wires.
Notes
One pair of jumper wires are pre-installed on the CCG EVK base board.
Technical Specifications
| Silicon Manufacturer | Cypress |
|---|---|
| Kit Application Type | Interface |
| Core Architecture | ARM |
| Silicon Family Name | CCG4 |
| Product Range | - |
| Silicon Core Number | CYPD4225-40LQXIT, CY7C65215 |
|---|---|
| Application Sub Type | USB Power Delivery (PD) Controller |
| Core Sub-Architecture | Cortex-M0 |
| Kit Contents | 2 x CCG EVK Base Boards, CY4541 CCG4 Daughter Card, Pwr Adapter, USB Cables & Adapters, Jumper Wires |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 3A991.b.2.b |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .025 |
