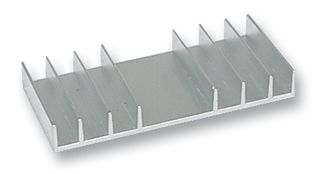

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | H S MARSTON |
|---|---|
| Manufacturer Part No | 05DN-03000-A-100Copy |
| Order Code | 414256 |
| Product Range | 05DN Series |
| Your Part Number |
No Longer Manufactured
Product Information
| Manufacturer | H S MARSTON |
|---|---|
| Manufacturer Part No | 05DN-03000-A-100Copy |
| Order Code | 414256 |
| Product Range | 05DN Series |
| Thermal Resistance | 1.75°C/W |
| Packages Cooled | - |
| External Width - Metric | 108mm |
| External Height - Metric | 14mm |
| External Length - Metric | 300mm |
| External Diameter - Metric | - |
| Heat Sink Material | Aluminium |
| External Height - Imperial | 0.55" |
| External Diameter - Imperial | - |
| Product Range | 05DN Series |
Product Overview
The 05DN-03000-A-100 is a medium-power extruded range-1 Heat Sink made of aluminium with mill finish. It is suitable for board-mounting and use with a wide variety of power devices.
Applications
HVAC, Thermal Management, Aerospace, Defence, Military
Technical Specifications
| Thermal Resistance | 1.75°C/W |
|---|---|
| External Width - Metric | 108mm |
| External Length - Metric | 300mm |
| Heat Sink Material | Aluminium |
| External Diameter - Imperial | - |
| Packages Cooled | - |
|---|---|
| External Height - Metric | 14mm |
| External Diameter - Metric | - |
| External Height - Imperial | 0.55" |
| Product Range | 05DN Series |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 76041090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .34 |
