KIT_XMC7200_DC_V1

KIT_XMC7200_DC_V1 is a XMC7200 motor drive card designed to demonstrate the motor control features of the XMC7200. This drive card features a XMC7200 microcontroller, high density connector, a multi feedback interface, an isolated on-board debug interface, and in total supports the control of up to 4 motors. The XMC7200 drive card is makes full use of ModusToolbox™ Motor Suite including application library and GUI configurator to support further SW development and parameterization. Suitable for industrial drives, robotics, light electric vehicles, PLC applications.

• Quad - 3 phase motor control
• Isolated Segger on board debugger
• Multiple feedback sensors
• Wi-Fi connectivity w. add-on module
• High density connector
• Ease of use and less complexity, galvanic isolation protection
• Precise positioning of motor axis, ability to remotely access kit, multi-connectivity enablement
• Provision for adaptor board, maximum design flexibility
• Different ways to enable power supply

Contents

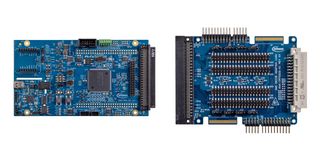

XMC7200 motor drive card, Interface card.
