MOSGENERICPOWBOARDTOBO1

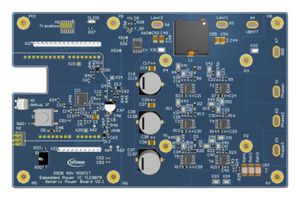

Evaluation Board, TLE9879QXA40, 3 Phase BLDC Motor Drive (SoC)
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoMOSGENERICPOWBOARDTOBO1
Order Code4410866
Also Known AsMOS_GENERIC_POW_BOARD, SP005875129
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM1,803.020 |
Price for:Each
Minimum: 1
Multiple: 1
RM1,803.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoMOSGENERICPOWBOARDTOBO1
Order Code4410866
Also Known AsMOS_GENERIC_POW_BOARD, SP005875129
Application Sub Type3 Phase BLDC Motor Drive (SoC)
Silicon ManufacturerInfineon
Kit Application TypePower Management - Motor Control
Silicon Core NumberTLE9879QXA40
Kit ContentsEvaluation Board TLE9879QXA40
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
MOSGENERICPOWBOARDTOBO1 is a generic power evaluation board allows the implementation of an automotive inverter application for controlling fans or pumps driven by BLDC motors. The system is controlled by the MOTIX™ TLE9879QXA40 32-bit motor control (SoC) with integrated MOSFET drivers in combination with OptiMOS™ -6 leadless MOSFETs. The design is capable to drive loads up to 400W supplied by a battery voltage of 12V. Typical applications include automotive thermal management, automotive fan and pump, radiator fan, water pump, 400W BLDC motor for 12V application.
- Drive loads up to 400W, thermally optimized and EMC optimized
- Detailed implementation of an automotive engine cooling fan application
- EMC is tested according to the CISPR25 standard
Technical Specifications
Application Sub Type
3 Phase BLDC Motor Drive (SoC)
Kit Application Type
Power Management - Motor Control
Kit Contents
Evaluation Board TLE9879QXA40
SVHC
No SVHC (21-Jan-2025)
Silicon Manufacturer
Infineon
Silicon Core Number
TLE9879QXA40
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.18
