EVB8710
Evaluation Board, MAC Controller to LAN8710 Ethernet PHY, High-Speed 10/100 Ethernet Transceiver

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EVB8710Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2292557 |
| Your Part Number |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM840.470 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EVB8710Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2292557 |
| Kit Application Type | Interface |
| Application Sub Type | Ethernet PHY |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | LAN8710A |
| Product Range | - |
| Kit Contents | Eval Board LAN8710A |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

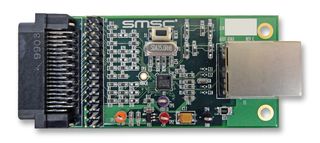

EVB8710 is a LAN8710A high-speed 10/100 ETHERNET transceiver customer evaluation board. The LAN8710A is a low-power, small form factor, highly integrated analogue interface IC for high performance embedded Ethernet applications. The EVB8710 is a PHY Evaluation Board (EVB) that interfaces a Media Independent Interface (MII) MAC controller to the LAN8710A Ethernet MII PHY via a standard 40-pin MII connector. The LAN8710A is connected to an RJ45 Ethernet jack with integrated magnetics for 10/100 connectivity.
- LAN8710A requires single +3.3V supply, provides an integrated +1.2V supply to run core digital logic
- PHY address configuration(user can configure default PHY address via PHYAD[2:0] configuration strap)
- Boot mode configuration via MODE[2:0] configuration straps at power-up
- nINT/TXER/TXD4 pin configuration (nINTSEL)
- EVB8710 can be clocked via the onboard crystal oscillator or an optional external clock
- 25MHz crystal Y1 is connected to the internal oscillator of the LAN8710A
- EVB8710 can be configured to use an external clock by removing crystal Y1 and resistor R20
