783818-02

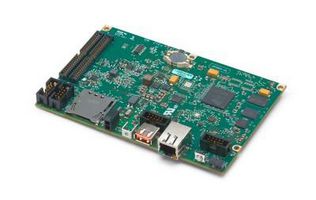

Controller, CompactRIO, sbRIO-9637, Xilinx Zynq-7000, 667 MHz, 2 Cores, 512 MB RAM, OEM kit
Image is for illustrative purposes only. Please refer to product description.
7 In Stock
Need more?
2 Delivery in 1-2 Business Days(SG stock)
5 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM15,602.100 |
Price for:Each
Minimum: 1
Multiple: 1
RM15,602.10
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNI / EMERSON
Manufacturer Part No783818-02
Order Code3620548
Technical Datasheet
Operating Frequency667MHz
No. of Processor Cores2 Core
RAM Memory Size512MB
Hard Drive Capacity512MB
Compatible WithNI CompactRIO Chassis
Supported OSLinux
Product Overview
783818-02 is a sbRIO-9637 compactRIO controller. The sbRIO-9637 is an embedded controller that integrates a real-time processor running NI Linux Real-Time, a user-reconfigurable FPGA, and I/O on a single printed circuit board (PCB). The sbRIO-9637 is designed to be easily embedded in high-volume OEM applications that require flexibility, reliability, and high performance. This controller features Gigabit Ethernet, CAN, USB, serial, and SDHC ports and an operating temperature range that can handle the most demanding environments. The sbRIO-9637 has sixteen 16-bit analogue inputs, four 16-bit analogue outputs, and 28 3.3 V digital lines.
- Zynq-7000 667MHz dual core CPU, 256MB DRAM, 512MB storage FPGA
- Operating temperature range from -20°C to 55°C
Technical Specifications
Operating Frequency
667MHz
RAM Memory Size
512MB
Compatible With
NI CompactRIO Chassis
No. of Processor Cores
2 Core
Hard Drive Capacity
512MB
Supported OS
Linux
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:84715000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.25
