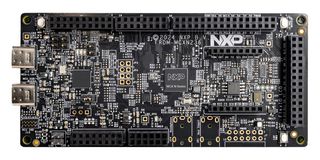

FRDM-MCXN236
Development Kit, MCXN236VDFT, MCXN23x, 32bit, ARM Cortex-M33
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXN236Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4445657 |
| Your Part Number |
23 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | RM91.250 |
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | FRDM-MCXN236Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4445657 |
| Silicon Manufacturer | NXP |
| No. of Bits | 32bit |
| Silicon Family Name | MCXN23x |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M33 |
| Silicon Core Number | MCXN236VDFT |
| Kit Contents | Development Board MCXN236VDFT W/Hardware Assembly, 3ft Micro USB Type A to USB Type C Cable |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
FRDM-MCXN236 is a FRDM development board for MCX N23x MCUs. It is a compact and scalable development board for rapid prototyping of MCX N23x MCU. It offers industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an onboard MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience. Applications include industrial, smart city, smart home.
- MCX N23x highly integrated MCUs with on-chip accelerator, intelligent peripherals, advanced security
- QSPI flash W25Q64 (64Mbit)
- HS USB-Type C connector, SPI/I2C/UART connector (mikroBUS, Pmod™)
- WI-FI connector (mikroBUS, Pmod™)
- TJA1057 CAN FD transceiver, audio auxiliary line input, headphone output jack
- Onboard MCU-Link debugger with CMSIS-DAP, JTAG/SWD connector
- FXLS8974CFR3 3-axis accelerometer, visible light sensor, digital microphone SPK0641HT4H-1
- Arduino® header, FRDM header, FlexIO/LCD header, SmartDMA/camera header, Pmod™, mikroBUS™
- RGB user LED, reset, ISP, wake-up buttons
Contents
FRDM-MCXN236, Quick start guide, USB cable Type-C.
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Silicon Family Name | MCXN23x |
| Core Sub-Architecture | Cortex-M33 |
| Kit Contents | Development Board MCXN236VDFT W/Hardware Assembly, 3ft Micro USB Type A to USB Type C Cable |
| SVHC | No SVHC (27-Jun-2024) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | MCXN236VDFT |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01 |
