LX2RDBKIT2-25G

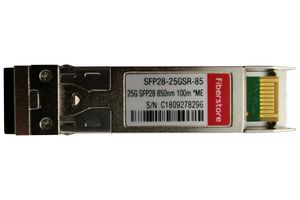

Development Kit Accessory, 25GE Transceiver/Cabling Kit For LX2160A Reference Design Board

| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | LX2RDBKIT2-25GCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2946534 |
| Your Part Number |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM1,836.430 |
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | LX2RDBKIT2-25GCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2946534 |
| Silicon Manufacturer | NXP |
| Silicon Core Number | LX2160A |
| Kit Application Type | Communication & Networking |
| Application Sub Type | Communication Processor |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-A72 |
| Silicon Family Name | QorIQ LX2 |
| Kit Contents | Reference Design Board LX2160A-25GE |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
QorIQ LX2160A reference design board. It provides a comprehensive platform that enables design and evaluation of the LX2160A processor. It comes pre-loaded with a board support package (BSP) based on a standard Linux kernel. Enables network intelligence with the next generation Datapath (DPPA2) which provides differentiated offload and a rich set of IO, including 10GE, 25GE, 40GE and PCIe Gen4. Supports designs in 5G packet processing, network function virtualization, storage controller, white box switching, network interface cards and mobile edge computing.
- Delivers unprecedented efficiency and new virtualized networks
- Supports all three LX2 family members (16-core LX2160A; 12-core LX2120A and 8-core LX2080A)
- LX2160A, 16x Arm® Cortex®-A72 CPU up to 2.2GHz processor
- Two DDR4 UDIMM to 3200MT/s
- 32GB total capacity (16GB per UDIMM)
- 128MB NOR, 128GB eMMC flash
- One 40G Ethernet QSFP+, Two 25G Ethernet SFP+, Two RJ45 10G Ethernet and Two RJ45 1G Ethernet
- One PCIe Gen4 x8 slot, One PCIe Gen4 x4 slot, four SATA3.0 connectors
- One USB3.0 Type A connector and one USB3.0 micro-AB connector
Contents
LX2160A RDB chassis assembly, Bag zip contains 1U chassis bracket (2PCS) + screw (8PCS), Power cord (3-conductor, C13 PSE), Cable Ethernet (CAT-6 Ethernet cable 1.8m), DB9 Pro series shielded serial cable, Insert card.
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Kit Application Type | Communication & Networking |
| Core Architecture | ARM |
| Silicon Family Name | QorIQ LX2 |
| Product Range | - |
| Silicon Core Number | LX2160A |
|---|---|
| Application Sub Type | Communication Processor |
| Core Sub-Architecture | Cortex-A72 |
| Kit Contents | Reference Design Board LX2160A-25GE |
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85176200 |
| US ECCN: | 5A991.b.4.b |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .45 |
