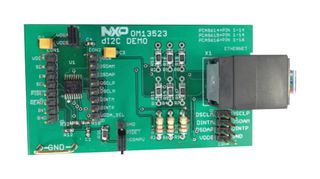

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | OM13523ULCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3370133 |
| Your Part Number |
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM163.490 |
Price for:Each
Minimum: 1
Multiple: 1
RM163.49
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | OM13523ULCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3370133 |
| Kit Application Type | Interface |
| Application Sub Type | I2C Bus Interface |
| Silicon Manufacturer | NXP |
| Silicon Core Number | PCA9616PW |
| Product Range | - |
| Kit Contents | Demo Board PCA9616PW |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
OM13523UL is a dI2C demo board for a demonstration of the differential I2C bus working better in noise and ground offset environment than standard I2C-bus. The two dI2C demo boards can be used to see the improvement of signal integrity in a noisy environment or a system that has many different power sources creating different ground offset.
- A complete evaluation platform for PCA9616 (or PCA9614 and PCA9615)
- Easy to connect to an existing system
- Convenient test point for easy scope measurement and signal access
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | NXP |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
| Application Sub Type | I2C Bus Interface |
|---|---|
| Silicon Core Number | PCA9616PW |
| Kit Contents | Demo Board PCA9616PW |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .036 |
