D-436-36CS9376
Parallel Splice, 26 AWG, 20 AWG, 0.75 mm², Copper Alloy, Insulated

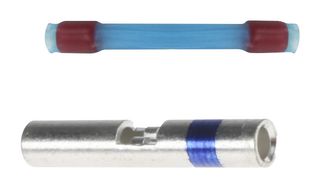

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - RAYCHEM
Manufacturer Part NoD-436-36CS9376Copy
Manufacturer Standard Lead Time27 weeks
Order Code4339352
Your Part Number
22,775 In Stock
Need more?
22,775 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM20.010 |
| 10+ | RM17.220 |
| 100+ | RM14.840 |
| 250+ | RM14.120 |
| 500+ | RM13.810 |
Price for:Each
Minimum: 1
Multiple: 1
RM20.01
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - RAYCHEM
Manufacturer Part NoD-436-36CS9376Copy
Manufacturer Standard Lead Time27 weeks
Order Code4339352
Product Range-
Wire Size AWG Min26AWG
Wire Size AWG Max20AWG
Conductor Area CSA0.75mm²
Terminal MaterialCopper Alloy
InsulationInsulated
SVHCNo SVHC (04-Feb-2026)
Product Overview
D-436-36CS9376 is a sealed in-line crimp splice.
- Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride sleeve
- Immersion resistant thermoplastic sealing ring
Technical Specifications
Product Range
-
Wire Size AWG Max
20AWG
Terminal Material
Copper Alloy
SVHC
No SVHC (04-Feb-2026)
Wire Size AWG Min
26AWG
Conductor Area CSA
0.75mm²
Insulation
Insulated
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001
