DA14535-00FXDEVKT-U

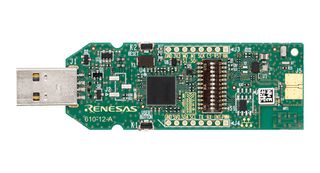

DA14535-00FXDEVKT-U is a SmartBond™ TINY DA14535 Bluetooth® low-energy 5.3 SoC USB development kit for the DA14535 SmartBond TINY™ SoC. It gives you all the flexibility to develop applications in a small and portable form factor. This kit offers a low-cost development board with basic functionality. The development kit is implemented on a single PCB. The purpose of this cost-effective USB kit is to provide users with the capability for: Software development, programming DA14535 via JTAG or UART using the DA14535 SDK and connecting MikroBUS™ modules. The DA14535 is an ultra-low power Bluetooth 5.3 SoC with an Arm® Cortex® M0+, 64kB of RAM, and 12kB of OTP that is specified for operation at 105°C. The DA14535 is available in a 24-pin FCGQFN package. Suitable for medical applications, disposables, Beacons, proximity tags and trackers, wireless sensor nodes, smartwatches, human interface devices, toys, industrial applications.

• USB type A male connector
• Option to power from 3V external battery and 2Mbit SPI flash IC
• 32MHz crystal
• JTAG and UART interface over USB
• Pre-loaded firmware
• Embedded Segger J-Link™ debugger
• Onboard flash (Adesto/AT25DF021A/2M-Bit)
• User switches and user LEDs
• Header connectors to access the GPIOs
• mikroBUS™ socket to allow to utilize a range of click boards™
