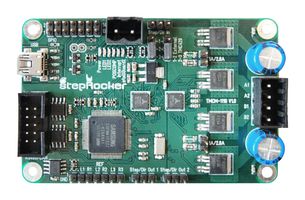

TMCM-1110-STEPROCKER
Stepper Motor Driver, 2-Phase, Single Axis, 2.8A, 24V DC Output, USB, RS485
| Manufacturer | TRINAMIC / ANALOG DEVICES |
|---|---|
| Manufacturer Part No | TMCM-1110-STEPROCKERCopy |
| Manufacturer Standard Lead Time | 42 weeks |
| Order Code | 2822196 |
| Product Range | TMCM StepRocker |
| Your Part Number |
968 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | RM606.360 |
Product Information
| Manufacturer | TRINAMIC / ANALOG DEVICES |
|---|---|
| Manufacturer Part No | TMCM-1110-STEPROCKERCopy |
| Manufacturer Standard Lead Time | 42 weeks |
| Order Code | 2822196 |
| Product Range | TMCM StepRocker |
| Control / Drive Type | 1-Axis Controller / Driver Module |
| No. of Phases | Two Phase |
| Output Current Max | 2.8A |
| Supply Voltage Min | 10VDC |
| Supply Voltage Max | 30VDC |
| Product Range | TMCM StepRocker |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The TMCM-1110 STEPROCKER from Trinamic is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by Trinamic stallGuard2™, coolStep™ and spreadCycle™ chopper technology and has a trapezoidal ramp generator. The TMCM-1110 is capable of driving up to 4A of current from each output (with proper heatsinking). It provides a RS485, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL communication.
- Motor supply range from 10V to 30V
- 2.8A phase current RMS
- 1 to 256 microsteps
- Dimension is 55mm x 85mm x 15mm (L x W x H)
Applications
Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Control / Drive Type | 1-Axis Controller / Driver Module |
|---|---|
| Output Current Max | 2.8A |
| Supply Voltage Max | 30VDC |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Phases | Two Phase |
|---|---|
| Supply Voltage Min | 10VDC |
| Product Range | TMCM StepRocker |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85371098 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .035 |
